Outdoor LED screen
HP series is designed for outdoor fixed installations, with pixel pitches of 2.5, 2.963,4,5,6.67,8 and 10mm and brightness up to 4,500-6,000 nits. Application fields: outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions, etc.
High reliability, wide application
The outdoor LED screen display is different compared to indoor LED screen display product. It is weatherproof and has high brightness capabilities. Therefore, it is very commonly used as outdoor digital billboard, outdoor advertising board, stadium scoreboard, safety and health information board, and many more.
All Weather Outdoor Work
The display can work normally under any weather conditions! High level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.
320mmX160mm Standard LED Module
Outdoor LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain. Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

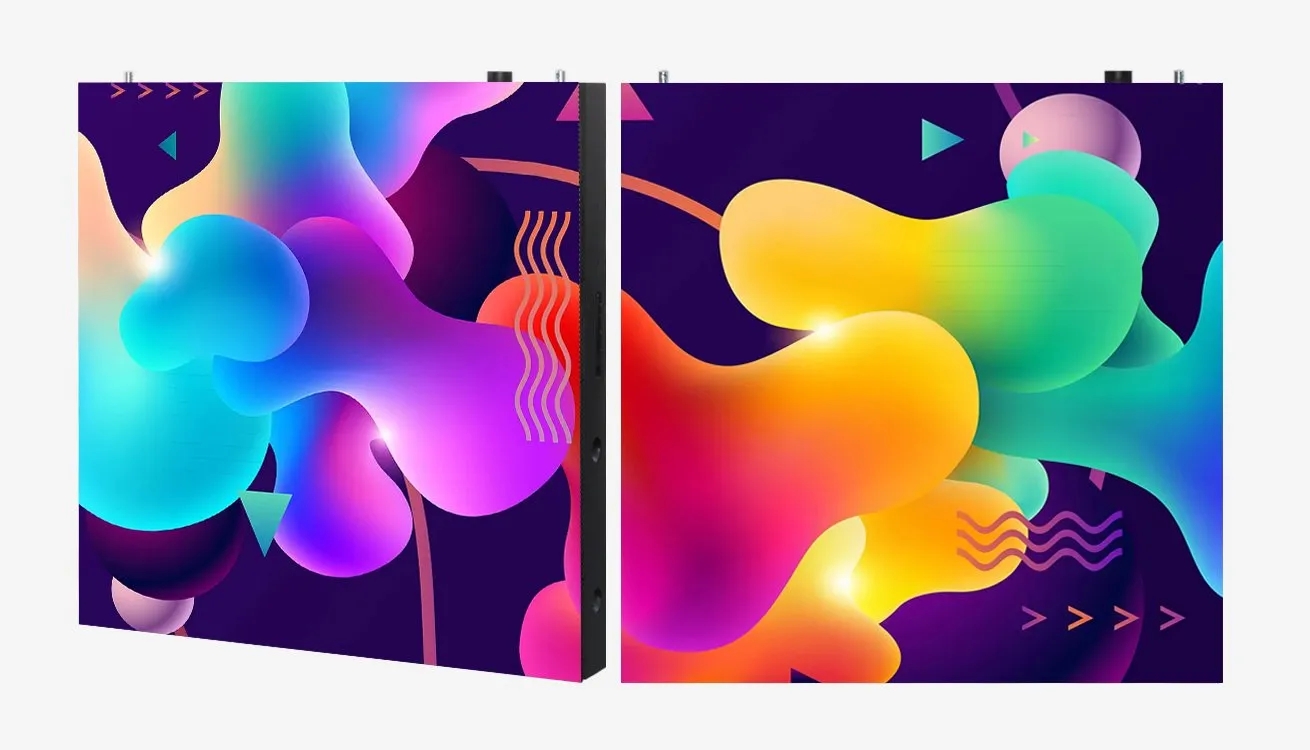

Best Color Uniformity and High Brightness
We choose the best driver IC for outdoor LEDs, with high reliability and contrast ratio, to meet the needs of high brightness, high refresh rate, high grayscale, and the best color uniformity.

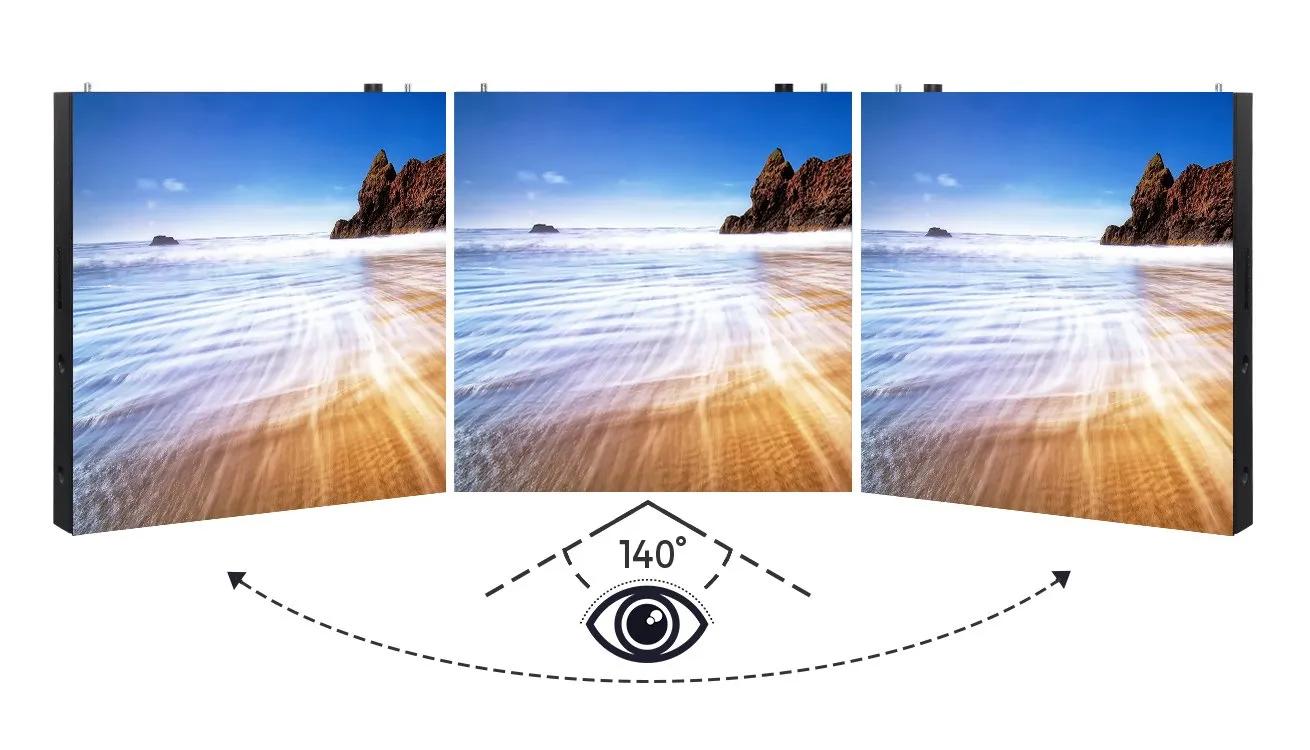

Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
IP65 Waterproof Weather Rating
A fully rated outdoor product is key to guaranteeing the longevity of your outdoor advertising led display screen.
Application Scenario

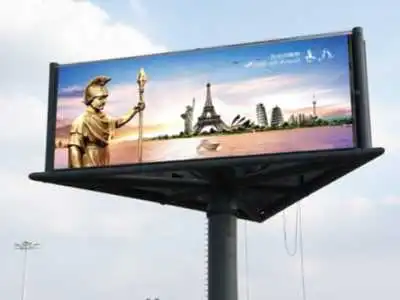

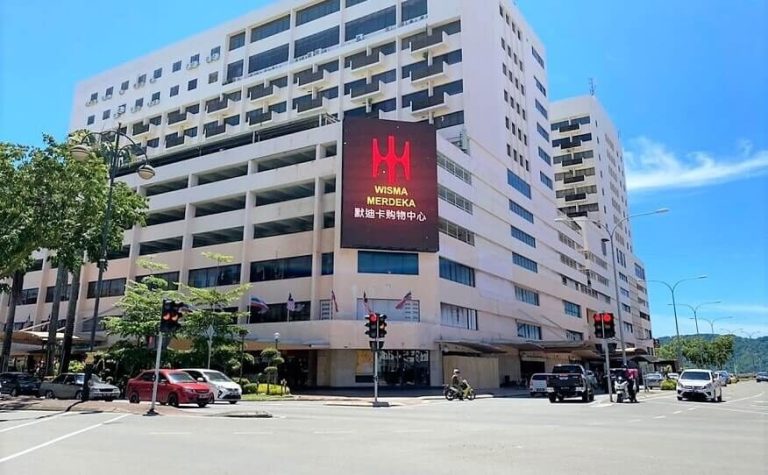

Digital Billboard

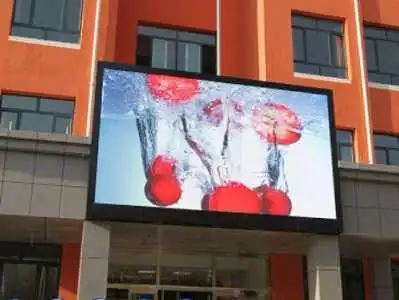

Advertising Board

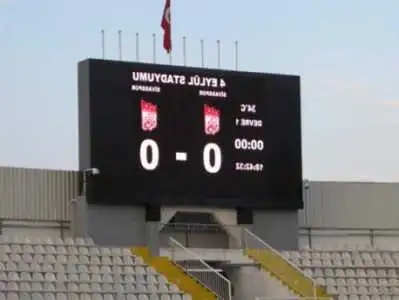

Scoreboard

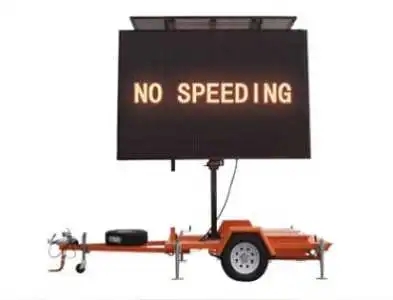

Traffic Management
Series Paramete
| Model | ZYST-HP2.5 | ZYST-HP2.963 | ZYST-HP4 | ZYST-HP5 | ZYST-HP6.67 | ZYST-HP8 | ZYST-HP10 |
| Pixel pitch(mm) | 2.5 | 2.963 | 4 | 5 | 6.67 | 8 | 10 |
| Pixel Density(dots/m) | 160000 | 113906 | 62500 | 40000 | 22500 | 15625 | 10000 |
| LED type | SMD1516 | SMD1516 SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Viewing distance(m) | ≥2.5 | ≥2.963 | ≥4 | ≥5 | ≥6.67 | ≥8 | ≥10 |
| Module size(mm) | 320X160 | 320X160 | 320X160 | 320X160 | 320X160 | 320X160 | 320X160 |
| Resolution (dots) | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 | 40X20 | 32X16 |
| Brightness (cd/m2) | ≥4500 | ≥4500 | ≥4500 | ≥4500 | ≥4500 | ≥4500 | >6000 |
| ViewingAngle (degree) | H≥160°V≥140° | H≥160°V≥140° | H≥160°V≥140° | H≥160°V≥140° | H≥160°V≥140° | H≥160°V≥140° | H≥160°V≥140° |
| Scan Mode | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Driving mode | Constant current | Constant current | Constant current | Constant current | Constant current | Constant current | Constant current |
| Refresh Rate(Hz) | ≥3840/≥1920 | ≥3840/≥1920 | ≥3840/≥1920 | ≥3840/≥1920 | ≥3840/≥1920 | ≥3840/≥1920 | ≥3840/≥1920 |
| Gray Level | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit |
| Avg.Power Consumption(w/m2 | 342 | 342 | 323 | 372 | 332 | 322 | 483 |
| Max.Power Consumption(w/m2) | 684 | 684 | 645 | 744 | 644 | 644 | 966 |
| Input voltage(V) | 4.2/5VDC | 4.2/5VDC | 4.2/5VDC | 4.2/5VDC | 4.2/5VDC | 4.2/5VDC | 4.2/5VDC |
| Lifespan | ≥100000hours | ≥100000hours | ≥100000hours | ≥100000hours | ≥100000hours | ≥100000hours | ≥100000hours |
| Interface | HUB75E | HUB75E | HUB75E | HUB75E | HUB75E | HUB75E | HUB75E |
| Protection class | IP65(front) | IP65(front) | IP65(front) | IP65(front) | IP65(front) | IP65(front) | IP65(front) |
